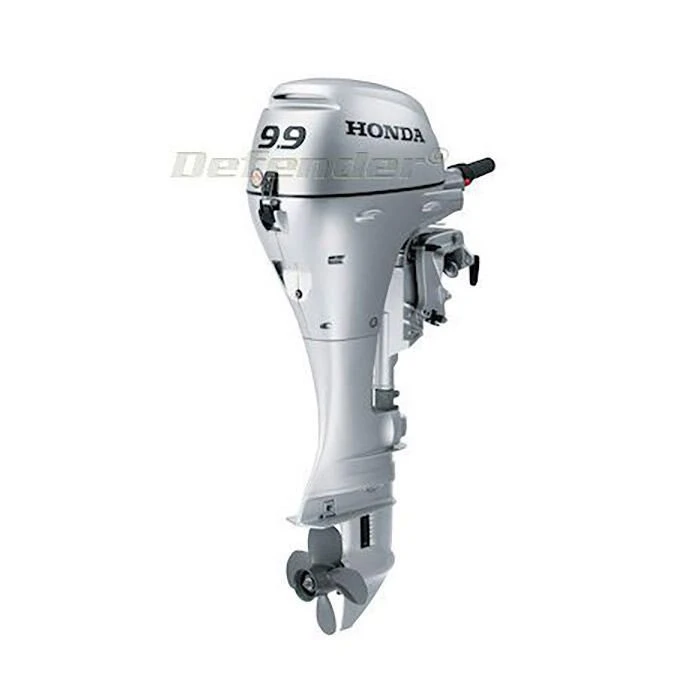

Honda 9.9 HP Tiller Outboard Motor – BF10 – 2023

Incredible torque, performance and versatility. The BF9.9, with its short, long and extra long shaft lengths, gives you plenty of choice for your fishing boat, sailboat or as a kicker for larger fishing boats.

Features:

• Twin cylinder, in-line, OHC design powerhead. World-renowned Honda quality combines proven reliability and quiet operation with no gas-oil mixing
• Pendulum-motion mounting system for the powerhead helps absorb the vibration, including longitudinal vibration. The pendulum mount does this without the use of a heavy balancer shaft, which also significantly reduces overall weight
• Exhaust gases are diverted through additional exhaust relief ports above the cavitation plate, allowing the propeller to back up into clean, bubble-free water, thereby increasing reverse thrust
• PGM-IG ignition provides reliable starts and optimum ignition timing enhancing running performance across the entire speed range
• Electronically controlled monitoring system protects the engine components from over-revving, low engine-oil pressure and overheating
• A high-quality regulator/rectifier is standard on all models to prevent overcharging the battery
• Fresh Water Flushport: allows easy hook-up to fresh water supply to flush debris and salt water out of the engine, extending the life of the outboard. (optional Flush Kit required)
• Shallow-Water Drive: allows you to run in shallow water with the engine raised to reduce the risk of damage to the lower gearcase
• All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board’s standards
• An automatically controlled start-up fuel-enrichment system ensures optimum air-fuel ratio to the engine, eliminating the chores of choke operation and greatly simplifying engine start-up (electric-start models only)
• Easy to transport, ideal for 10-12′ fishing boats, inflatables or for auxiliary sail and trolling power
• Forward-Mounted Shift Lever: allows more control and comfort in shifting
• Quick-Twist Throttle Friction Adjuster: A simple twist of the throttle friction collar located right at the throttle grip allows you to adjust the throttle tension up or down, minimizing driver fatigue
• A quick-adjust lever design located just above the transom bracket allows for precise adjustments at your fingertips
• Foldaway carry handle is situated at the exact horizontal balance point of the engine so that the engine carries more easily in a level position
• Long tiller handle for increased control and reduced steering effort. The tiller handle is also made of lightweight composite for increased strength and weight reduction
• A 12 L fuel tank, fuel hose and aluminum propeller are included as standard equipment

Specifications:

• Engine type: 4-Stroke SOHC; 2 Cylinders / 4 Valves
• Displacement: 222 cc / 13.5 cubic in
• Bore & Stroke: 58 mm x 42 mm (2.3″ x 1.65″)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Propshaft Rated Horsepower (HP): 9.9 HP @ 5,500 RPM
• Cooling System: Water Cooled
• Fuel Delivery: 1 Carburetor
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: PGM-IG
• Starting System: Electric or Rope
• Exhaust: through hub
• Lubrication: Forced Lubrication (Trochoid pump)
• Recommended Oil: SAE 10W30 API service classification SJ or later
• Oil Capacity: 1.30 L (1.14 qt) with oil filter repl
• Trim Range: 5-Stage 4°-8°-12°-16°- 20°
• Tilt Range: 72°
• Gear Ratio: 2.33:1
• Gear Shift: F-N-R
• Control type: tiller
• Alternator (Manual Start): 6A/76W
• Alternator (Electric Start): 12A/152W
• Oil Pressure Alert: Standard
• Over Rev-Limiter: Standard
• Temperature Alert: Standard
• Overall Width: 345 mm (13.6″)
• Propeller Type: 4-Blade (Aluminum)
• Propeller Diameter x Pitch: 235 x 229 mm (9 1/4″ x 8″)
• Weight: 42-48.5 kg (103-117 lbs)
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Owner’s Manual (6.26 MB)
