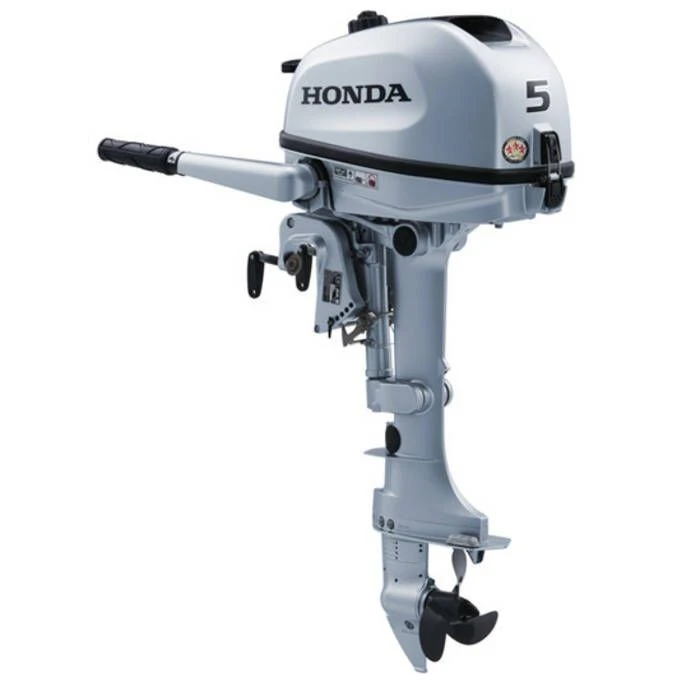

Honda 5 HP Tiller Outboard Motor – BF5 – 2022

Portability, performance, reliability and user-friendliness are the hallmarks of this new portable engine model; the BF5 four-stroke outboard. The new BF5 is easy to start, easy to stop and easy to carry thus making it ideal for small fishing boats, inflatables and as an auxiliary motor.

Features:

• World-renowned Honda quality combines proven reliability with one-cylinder, 127 cubic centimeter engine block and benefit from Honda’s 4-stroke engine technology expertise
• Packed with the latest technology from Honda, the 127 cc, 4-stroke, single cylinder engine, the BF5 is a compact, lightweight engine, with excellent low- to mid-range power
• Maintenance-free, high-energy output for quick and easy starts
• To help protect the engine, the Honda BF5 outboard also feature an Oil Alert System that indicates low oil pressure
• Fresh Water Flushport: Allows easy hook-up to fresh water supply to flush debris and salt water out of the engine
• Efficient Fuel Tank Cooling: The cover of the all-new Honda BF5 is designed to effectively cool the internal fuel tank by facilitating the flow of cool air around the engine
• Shallow-Water Drive: Greatly reduces the risk of engine damage while navigating in shallow water
• A sacrificial anode is mounted on the antiventilation plate of the lower unit. It is used to protect other metal components on the outboard from corrosion
• Full-Swivel Bracket Design: Durable design reduces vibration being transferred to the tiller handle
• Large Front-Mounted Carrying Handle: Provides superior portability and ease of installation
• Fold-Down Tiller Handle: A more compact design allows the tiller handle to fully fold down or up in a variety of positions out of the way
• A new decompression mechanism helps make the new Honda BF5 easy to pull start, regardless of the engine temperature
• High output charging system of 6A at 12V standard to power consumer demands for electronic devices on board
• One-push stop switch is a segment-first, and serves to shut down the engine with no chance of the engine re-starting
• Innovative, newly designed rubber mounts greatly reduce vibration and noise in all rpm ranges
• Neutral-Start-Only: The BF5 incorporates a safety lock-out system that allows the engine to be started in neutral gear only
• Integral Fuel Tank: easy removal and portability as one unit. Vent may be closed for transport or extended storage periods

Specifications:

• Engine: 4-Stroke, OHV, 1 Cylinder / 2 Valves
• Displacement: 127 cc / 7.8 cu.in
• Bore & Stroke: 60 x 45 mm (2.4″ x 1.8″)
• Full Throttle RPM Range: 4,500-5,500 RPM
• Propshaft Rated Horsepower: 5 HP @ 5,000 RPM
• Cooling System: Water cooling with thermostat
• Fuel Delivery: 1 Carburetor
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Tank Capacity (Built-in): 1.5 L (0.33 gal)
• Ignition System: Digital CDI
• Starting System: Recoil
• Exhaust: Under Water, above propeller
• Lubrication: Trochoid pump pressure lubrication
• Recommended Oil: SAE 10W30 FC-W® or API service classification SJ or later
• Oil Capacity: 0.55 L (0.56 US quart)
• Fuel tank capacity: 0.39 gal
• Transom angle: 5-Stage adjustment (4°-8°-12°-16°-20°)
• Tilt up Angle (when transom angle at 12°): 3-Stage adjustment (18°- 34°- 58°)
• Steering Angle: 45° right and left
• Gear Ratio: 2.08:1 (27/13)
• Gear Shift: F-N-R
• Oil Pressure Alert: Standard
• Over Rev-Limiter: Standard
• Propeller Type: 3-Blade Aluminum
• Standard Propeller: 200 mm x 170 mm (7 7/8″ x 6 3/4″)
• Weight: 60 lbs
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Note: External fuel tank capable. Tank and fuel line not included.
