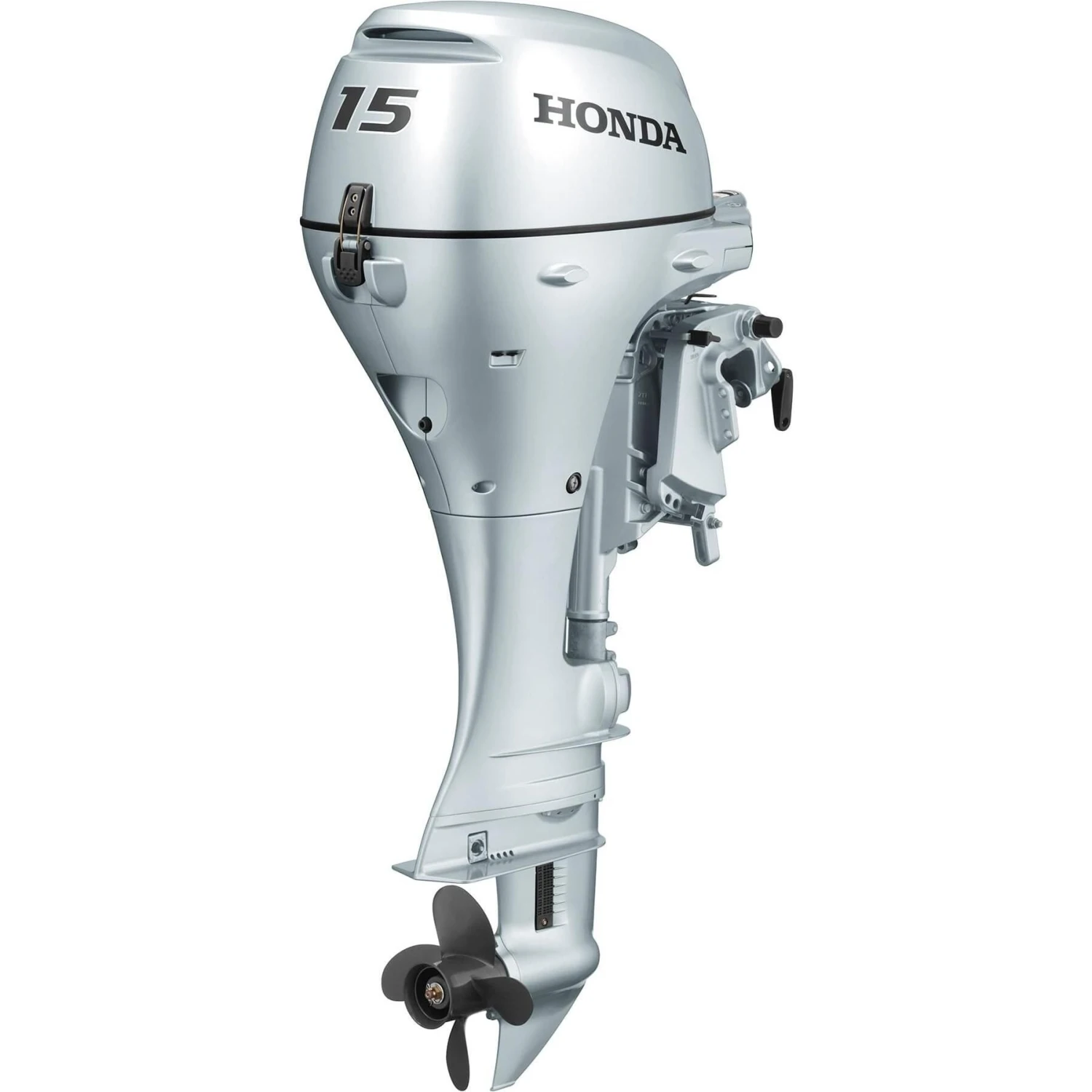

Honda 15 HP Remote Outboard Motor – BFP15 – Power Thrust – 2024

The BF15 and BF20 are as convenient as you can get. At just 104 pounds, they are among the lightest in their class. Yet they’re all Honda DNA: quiet, reliable, fuel efficient, and loaded with features. Like the highest output charging system in their class, giving you plenty of power for all your electronics, even when trolling. Or large displacement for a powerful performance. Power Thrust design with 60% more thrust in reverse and 15% more in forward.

Features:

• A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall performance
• An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage
• Conventional 2-circuit carburetors go directly from a lean mixture at idle to a rich setting at full throttle
• Conveniently allows user to tilt the unit out of the water. At low speeds acts like a power shallow-water-drive device, permitting access to the shallow water areas
• The exhaust relief feature creates more power in reverse by minimizing cavitation around the propeller blades
• The integrated warning system protects the engine from severe damage due to low oil, over-revving and overheating
• A patented, “Double Sealed” multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection
• Auto Start Enrichment acts as an automatic choke, just like a fuel injection system
• A integrated carrying handle makes transporting the engine a breeze
• Honda’s exclusive triangulated rubber mount system absorbs vibration and provides unbelievably smooth operation
• Convenient front-mounted shift lever allows fingertip shifting. The Twist Grip Throttle & Tensioner minimize driver fatigue
• A unique lever design allows you to precisely adjust steering tension for improved control and comfort

Specifications:

• Engine type: 4-Stroke SOHC 2 Cylinder/4 Valves
• Displacement: 350 cc (21.4 cubic inches)
• Bore & Stroke: 59 mm x 64 mm (2.3″ x 2.5″)
• Full Throttle RPM Range: 4,500-5,500 RPM
• Rated Power: 15 HP @ 5,000 RPM
• Cooling System: Water Cooled
• Fuel Delivery: 1 Carburetor
• Ignition System: PGM-IG
• Exhaust: Through Hub
• Lubrication: Wet Sump
• Oil capacity: 1.1 L (1.2 US quart) with oil filter replacement
• Trim Range: 4 Stage 8°-12°-16°-20°
• Tilt Range: 72°
• Gear Ratio: 2.08:1
• Gear Shift: F-N-R
• Steering: remote
• Alternator with voltage regulator (Electric Start): 12A/148W
• Propeller: 4-Blade Aluminum
• Diameter x Pitch: 10″ x 7 5/8″
• Oil Pressure Alert: Standard
• Temperature Alert: Standard
• Rev-Limiter: Standard
• Dry weight: 131 – 137 lbs
• 3.2 Gallon external fuel tank and fuel line
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Note: Ccontrol box not included.

Owner’s Manual (6.26 MB)
